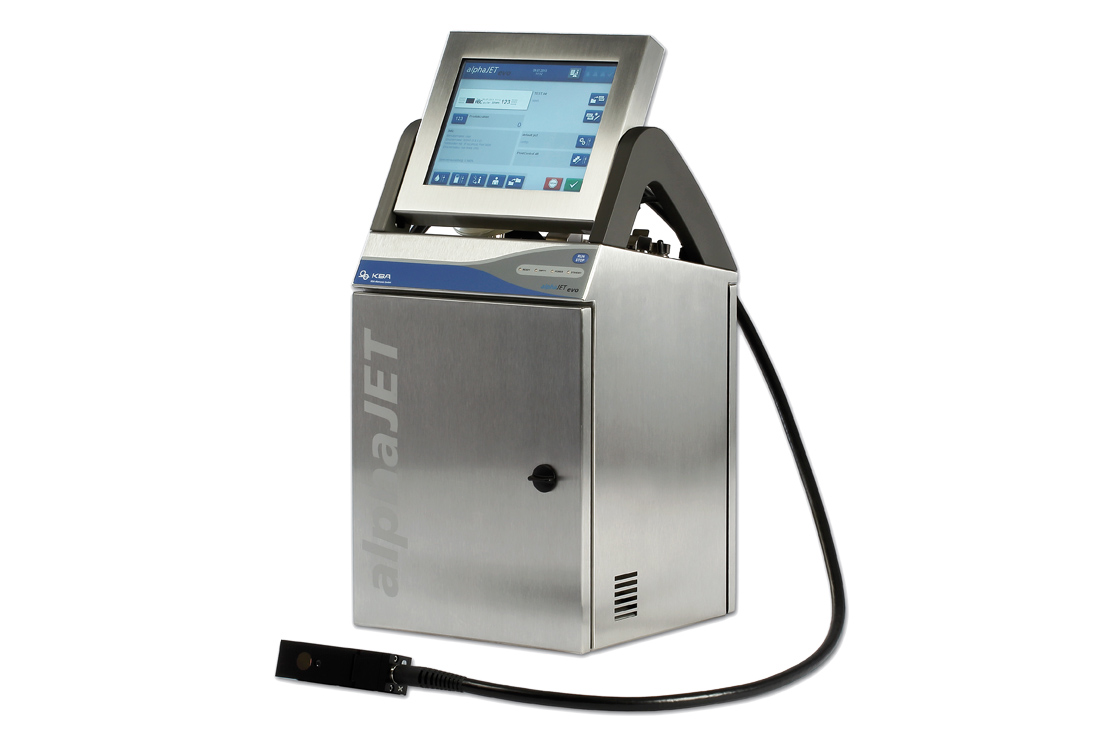

alphaJET EVO Specialist CIJ

The alphaJET evo continuous inkjet gives you the option to print up to 8 lines of sharp text, barcodes, 2D codes and logos, in even the most demanding environments. alphaJET printers are easy to integrate with production equipment thanks to the the G-PRINT universal interface protocol.

  • Stainless steel housing with IP65 rating
  • Consistent print quality on almost any substrate
  • 48 pixels, 1-8 lines of print
  • Options for standard, coloured and process inks
  • Heated print head
  • Removable control screen for easy integration in tight spaces
  • Available with 55 micron or 70 micron print head
  • Print bar codes and 2D data matrix codes

Technical Specification

Print

Max. number of pixels (vertical)
48
Max. printable lines (5x5 Matrix)
8
Font height (mm)
0.8 - 15
Max. speed with 2.5 mm character width (5x5 Matrix)
460 m/min
Nozzle size
55 µm / 70 µm
Dye-based ink
Yes
Pigmented ink
Yes

Text Composition

Counter (with autostop) and time functions
Standard
DataMatrix, QR-Codes, Barcodes, DotCodes
Standard
Symbols and logos (BMP format)
Standard
Remote textswitch, text lists
Standard
Distance measurement
Standard
Optional customised software
Yes

Production Environment

Protection class
IP 65
Ambient temperature
5 - 45 °C

Dimensions

Housing (H x W x L; mm) with terminal
700 x 320 x 320
Housing (H x W x L; mm) without terminal
510 x 320 x 320
Control terminal (H x W x L; mm)
232 x 300 x 66
Print head (H x W x L; mm)
145 x 40 x 40
Umbilical
4 m / 6 m optional

Weight

Housing with terminal
31 kg
Housing without terminal
26 kg
Control terminal
2.5 kg
Print head incl. umbilical
2 kg

Interfaces

Network (TCP/IP)
Standard
RS 232
Standard
USB (file management)
Standard
Digital I/O port
8/4
Volt free programmable alarm relay
Standard
4-colour signal beacon
Optional
Remote socket
Standard

Power Requirements

Mains voltage (AC)
86 - 264 V ± 10 %
Power consumption (max.)
0.5 A/230 V; 1 A/110 V
