alpahJET into CIJ

Robust, versatile and easy to use

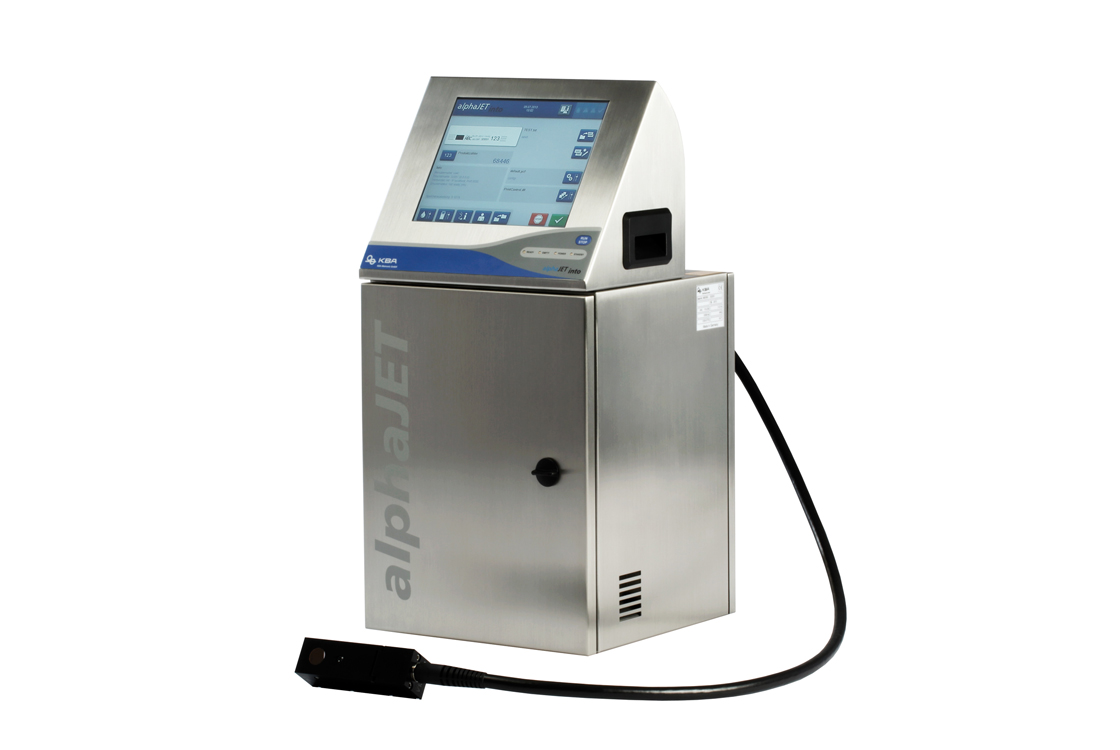

alphaJET into continuous inkjet printer - CIJ

Precision Coding and Marking

The alphaJET into continuous inkjet (CIJ) is a versatile printer that will take you from printing simple alphanumeric text all the way through to precision data matrix coding. With a throw distance in excess of 50mm, it is ideally suited for printing on curved, uneven and irregular surfaces.

Versatility

With its compact footprint and choice of connectivity options, the alphaJET into is easy to integrate into production lines and networks. It can be used with pigmented inks, UV readable inks and other process-specific inks. The alphaJET into’s integrated solvent recovery system reduces consumables costs and means that there is practically no odour.

Reliable Performance

The stainless steel housing is IP65 rated, ensuring performance and longevity even in harsh, high-humidity and dusty production environments. With the large colour touchscreen and simple menu system, the alphaJET into is very easy for operators to use. User roles and password protection keep your print messages secure.

Print Capabilities

  • Complete range of fonts and logos
  • Bar codes and 2D data matrix codes
  • Automatic date and time functions
  • Numbering and text list functions
  • 0.8 – 15mm print height
  • Black, opaque coloured, specialist and process-specific inks



Technical Specification

Print
Max. number of pixels (vertical)32
Max. printable lines (5x5 Matrix)5
Font height (mm)0.8 - 15
Max. speed with 2.5 mm character width (5x5 Matrix)460 m/min
Nozzle size55 µm / 70 µm
Dye-based inkYes
Pigmented inkYes
Text composition
Counter (with autostop) and time functionsStandard
DataMatrix, QR-Codes, Barcodes, DotCodesStandard
Symbols and logos (BMP format)Standard
Remote textswitch, text listsStandard
Distance measurementStandard
Optional customised software-
Interfaces
Network (TCP/IP)Standard
RS 232Standard
USB (file management)Standard
Digital I/O port8/4
Potential free programmable alarm relaisStandard
4-colour signal beaconOptional
Remote socketOptional
Production environment
Protection classIP 65
Ambient temperature5 - 45 °C
Dimensions
Housing (H x W x L; mm) with terminal620 x 320 x 320
Housing (H x W x L; mm) without terminal-
Control terminal (H x W x L; mm)145 x 40 x 40
Print head (H x W x L; mm)145 x 40 x 40
Umbilical4 m
Weight
Housing with terminal26 kg
Housing without terminal-
Control terminalIntegrated
Print head incl. umbilical2 kg
Power requirements
Mains voltage (AC)86 - 264 V ± 10 %
Power consumption (max.)0.5 A/230 V; 1 A/110 V
Integrated UPS-
